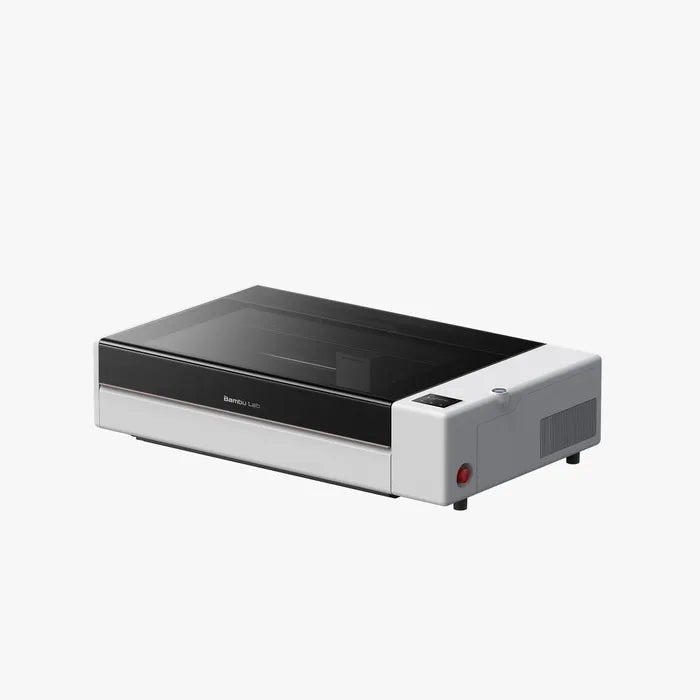

Bambu Lab R1 CO2 Laser Cutter

$2,499.00 USD

Product Features
--55W CO2 Laser: Cut and engrave wood, clear acrylic, leather, and more, with materials up to 20 mm thick in a single pass.
--Large Work Area: 600 × 300 mm, or up to 3000 mm long stock with the Conveyor.
--Auto Laser Alignment: Hands-free optical path calibration in about a minute. No thermal paper, no test shots.
--TriSense System: Cameras, lasers and XY encoders combined for positioning accuracy within 0.2 mm.
--Vibration Compensation: Cancels residual shake after a turn for clean, crisp lines.
--High-Speed Engraving: Up to 1000 mm/s with 20,000 mm/s² acceleration.
--Class 1 Laser Safety: Fully enclosed beam in normal use, with lid-stop, flame detection and emergency stop.

Product Features

Option

CO₂ laser. Wood to glass. Tabletop decor to furniture.

Bring out the best in every material.

Powered by a 55W CO₂ laser, R1 works across a wide range of materials — from wood and acrylic to glass, leather, fabric, and more — each bringing its own character to the piece.



What's in the box

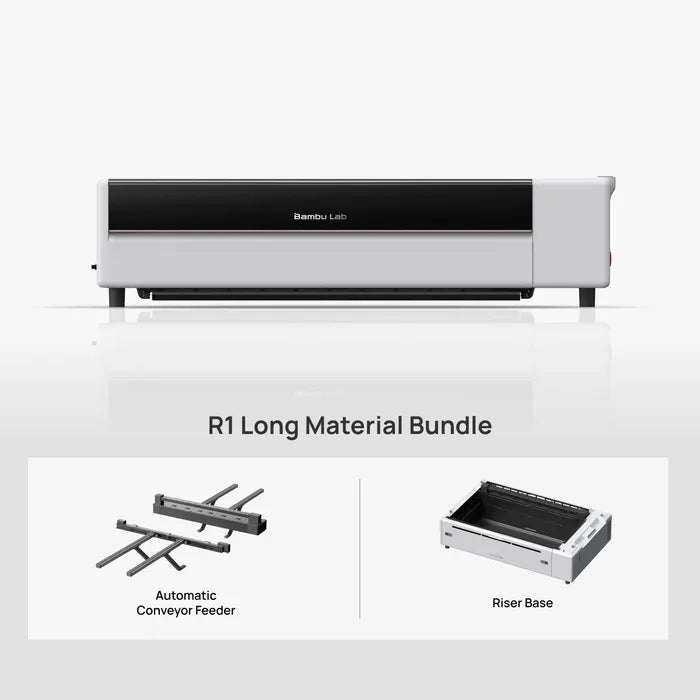

  R1 R1 Long Material Bundle

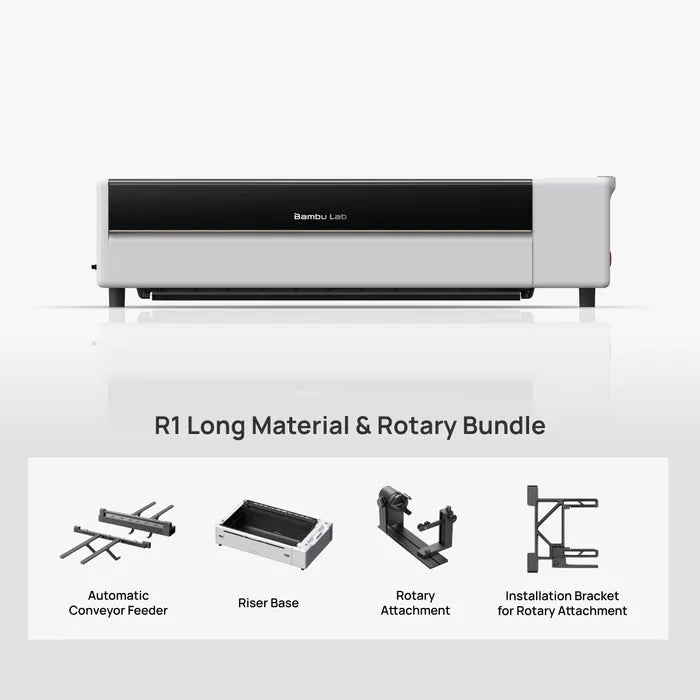

R1 Long Material & Rotary Bundle
R1
 1 1 1
Power Cord
 1 1 1
Smoke Ventilation Hose
 1 1 1
Smoke Ventilation Fan
 1 1 1
Anti-freeze
 1 1 1
Funnel
 1 1 1
Allen Key
 1 1 1
Safety Key (Pre-installed)
 1 1 1
Laser Alignment Sensor
 1 1 1
Material Pin
 1 1 1
Calibration Board
 1 1 1
Lubricant Grease
 2 2 2
Lubricant Oil
 1 1 1
Clear Acrylic
 1 1 1
Basswood Plywood
1 1 1
Riser Base
 - 1 1
Automatic Conveyor Feeder
- 1 1
Rotary Attachment
 - - 1
Rotary Attachment Bracket
 - - 1

R1 Specs

Processing
Laser type
55W CO2 laser
Supported materials
Cut & engrave: wood, acrylic (incl. clear acrylic), leather, fabric, paper, EVA foam, shell
Engrave only: coated metal (bare metal cannot be engraved), glass, ceramic
Max cutting capacity
Short-focus: 15mm black walnut / 20mm acrylic
Medium-focus: 18mm black walnut / 20mm acrylic
Long-focus: 18mm black walnut / 20mm acrylic (faster than medium at the same thickness)¹
Working area
Standalone: 600×300mm
With Conveyor: 600×3000mm
Max speed
1000mm/s
Max acceleration
20000mm/s²
Spot size
Short-focus: Ø0.11mm
Medium-focus: Ø0.17mm
Long-focus: Ø0.19mm
Absolute motion accuracy (with Vision Encoder)
<0.1mm @600mm
Air assist pump
30L/min @30kPa
Measurement & Positioning
 Positioning system
 Dual-camera + dual-laser + dual-encoder system
 Positioning accuracy
 <0.2mm
 Panoramic capture
 Supported
 Detail capture
 Supported
 Focusing
 Fully automatic laser ranging
 Toolhead positioning measure
 Supported
 Curved surface processing
 Supported
 Cylinder processing
 Supported
 Revolve shape processing
 Supported
Automation
Laser alignment
Fully automatic
One-tap setup
Supported
Autofocus
Supported
Automatic material recognition
Supported²
System health management
Supported
Safety
Safety certification
Class 1 laser safety³
Safety interlocks
Lid-open protection
Flame detection
Auto fire extinguishing⁴
Safety key
Standard
Emergency stop
Standard
Physical & Power
Dimensions
940×560×200mm
Space required
Standalone: W940 × D660 × H650mm (lid open). Allowing 100mm of clearance on the left, right, rear, and top: 1140 × 860 × 750mm.
With Riser Base: W940 × D660 × H850mm (lid open). Allowing 100mm of clearance on the left, right, rear, and top: 1140 × 860 × 950mm.
With Riser Base and Conveyor: Starts from the Riser Base footprint, plus room in front and behind for long stock to extend beyond the machine: In front: stock length − 400mm; Behind: stock length − 550mm
Example: for 1500mm stock, allow ~1100mm in front and ~950mm behind, in addition to the base footprint.
Package dimensions
1095×725×310mm
Weight
33.5kg
Max input power
780W
Input voltage
100–240 VAC, 50/60Hz
Recommended operating temp
10°C – 30°C
Software
Software
Bambu Suite
OS
Windows, macOS
Connectivity
Wireless
Dual-band Wi-Fi
USB
Supported
Wi-Fi frequency
2412–2472MHz, 5150–5850MHz (FCC/CE) · 2400–2483.5MHz, 5150–5850MHz (SRRC)
Wi-Fi TX power (EIRP)
2.4GHz: <23dBm (FCC), <20dBm (CE/SRRC/MIC) · 5GHz Band1/2: <23dBm · Band3: <30dBm (CE)/<24dBm (FCC) · Band4: <23dBm (FCC/SRRC)/<14dBm (CE)
Wi-Fi protocol
IEEE 802.11 a/b/g/n/ac/ax

1. All references to wood refer to plywood. 2. Automatic material recognition is supported for Bambu Lab official materials only. 3. When used with the riser base or the auto-feed accessory, the enclosure is no longer complete and the laser cutter changes from an enclosed Class 1 device to a Class 4 device, requiring CO2 laser-safety eyewear, and is intended for professional use by trained personnel only. 4. Requires the Auto Fire Extinguishing System, sold separately.
